Diesel Motorcycles using Harley Davidson Parts

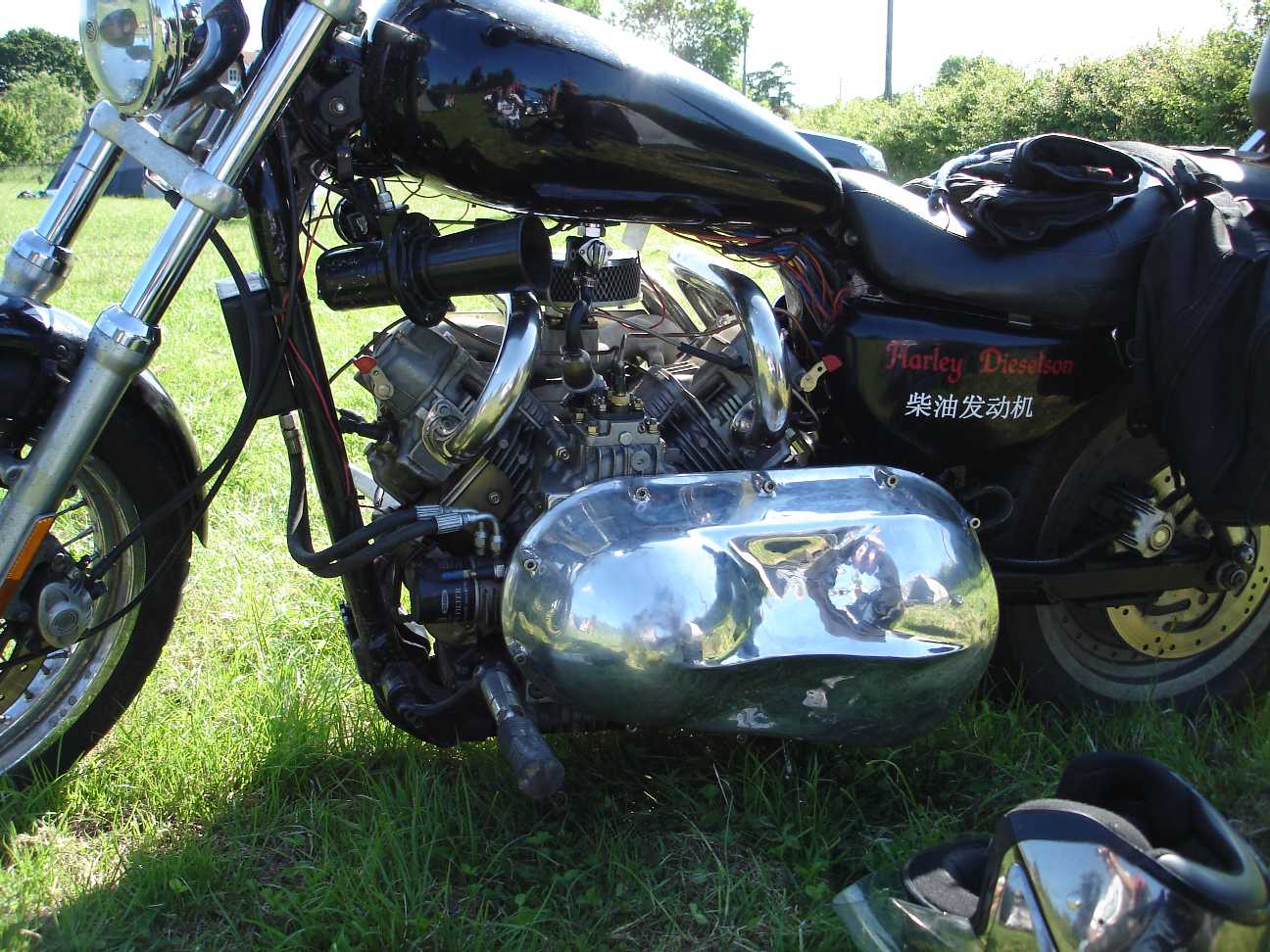

Whiskers Punsen Harley Davidson motorcycle.

A great shot of Whiskers riding out from the UK diesel motorcycle rally, the Big Knock in 2009.

Beautiful case over the primary drive made by Brian.

Brett's Punsen Harley.

My Harley sportster is nearly finished. Still have minor issues to attend to - throttle sticking at handlebars; 2d hole in dash needs to be filled; rear footpegs?; paint headlight housing; put on cvt cover; etc.. Rode it the other day when the weather was beautiful. no problems thus far other than the throttle sticking. only got her up to about 45 mph not wanting to go too far without proper licensing. will do that this coming week hopefully as i wait for decent weather and finish off bits and bobs.

From my understanding it was originally a 1969 sporty. frame change before i got it to a 1992 frame, so titled as 1992 Harley. Punsun 812cc v-twin, crossmembers welded and rubber mounted, comet duster cvt, rsd, LEFT FOOT BRAKE (odd), dual disc front, dual tanks independently plumbed so veg can be used, custom metallic purple paint (iridescent and seems to change color. fun!).

Diesel Harley Davidson from Heiko Flick.

We saw this at the 2008 Hamm Rally. If I remember correctly there was evidence that the clone Punsen engine had been welded at some stage.

Lombardini Diesel Harley Davidson from Heiko Flick.

This motorcycle sports a 3 cylinder Lombardini engine. It too was seen at the 2008 Hamm Treffen.

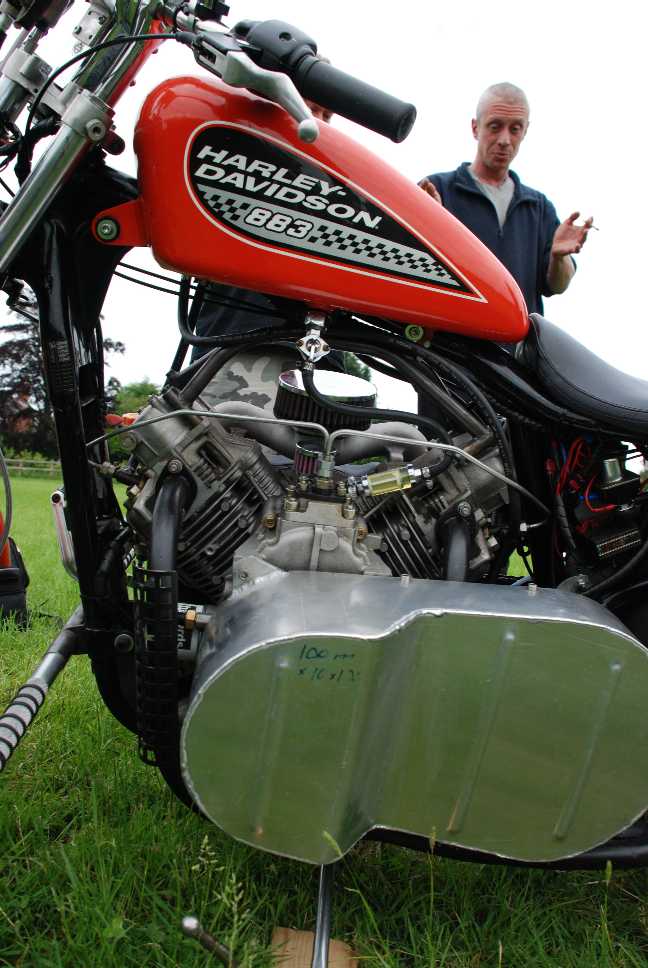

Mark's Punsun Diesel Harley Sportster

He we see Mark's Harley Davidson conversion. Complete with Punsun V twin engine this bike made its first public appearance at the 2008 Big Knock Diesel Bike rally in West Sussex. The drive is CVT.

The Punsun engine from China is becoming a favourite amongst builders of diesel motorcycles.

A.E.D. Corp Common Rail Diesel Motorcycle

I am indebted to Nick Hirsch for supplying me with details regarding the Advanced Engine Development Corp Common Rail Diesel Motorcycle project. I'm told the107-in cubed V-twin engine is now installed in a 1988 FXRS Harley-Davidson MC and is being operated on the street. Although not fully developed in terms of electronic engine event control, i.e., injection timing, fuel delivery, turbo boost, it runs well and sounds great. Things are still progressing at a steady pace. The engine is an S&S unit.

The picture taken shows the bike from the Turbo side and I'm told the engine has changed in some detail since the original SAE paper was written about it's development (which started in 2004). It still includes a 23 K PSI Bosch common rail fuel injection system with custom electronic engine control, VNT turbocharger with intercooler, and has 16.5-1 compression ratio.
AED run the machine on Biodiesel (B20) and plan to publicize it more in the near future but at this time, commercialization plans have not been drawn up. AED Corp has done extensive R&D work for the U.S. Military to explore advanced heavy fuel burning in it's future vehicles.


Terry Martin's Diesel Harley

Below we see Terry Martin's 1977 Harley Davidson Diesel Softail FXRS. The engine is a 950cc Briggs & Stratton/Daihatsu. Many thanks to Terry for supplying the details below.

I'm a diesel mechanic and have wanted to build a diesel bike for several years, but the diesels with enough power to be road worthy were to heavy. After Yanmar, Kubota etc. started building minidiesels I started checking the horsepower and torque of the engines and planning on how to attach it to a bike. My first engine was Kubota, but I was disappointed with the performance. Top speed was about 60mph with no passing power. I then found the Briggs and Stratton engine(Diahatsu). This engine performs great. It will carry me(270lbs) and my wife at 65mph with plenty of power to pass. Top speed 82 . The gearing in the bike is the same as a Harley Davidson softail as a matter of fact the primary belt drive, transmission and frame is Harley Davidson aftermarket parts.

Harold's Harley

Y'know, I just knew there had to be a Diesel Harley Davidson somewhere in the world and here it is! Harold Benich from Albion, Pennsylvania, put together a bike which he runs on a mixture of normal and biodiesel. He says biodiesel gives him a little more power and improves MPG.

Go here for more information.

Harolds Harley

Harold's Harley. Running this bike on Biodiesel gives more power and MPG.

Indian Diesel Trike

I'm told the three-wheeler is a Harley-Davidson Servicar. Originally powered by a 750 side valve motor, same as used in the WLA. This one has clearly been fitted with some sort of Diesel engine. The Picture is from India.


The EDIMO Smart Diesel Project

This bike made a showing at the 2005 Hamm Diesel Motorcycle Rally. They had trouble sorting the electronics out to run the Smart Engined project bike but got some help from the boatbuilders here. The engine is a Smart 800cc unit while the gearbox is Harley D.

edimo1.jpg edimopmrechtsalt.jpg


The Finished Bike

The EDIMO Smart Bike
